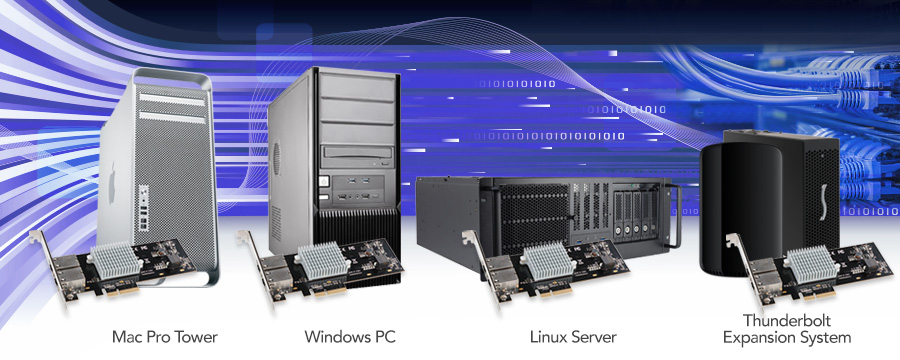

Computers with Presto 10GbE 10GBase-T PCIe Cards

10 Gigabit Cabled Networking

Ultra-Fast 10 Gb/s Network Connection

With creative pros’ increasing demand for greater data transfer speeds and more bandwidth over shared networks, it’s no wonder that 10 Gigabit Ethernet (10GbE) use has skyrocketed—this high-speed cabled networking standard offers ten times the performance of Gigabit Ethernet, the common wired network connection included with most computers today. To get your computer up to speed, you’ll have to adapt—Sonnet’s Twin10G™ 10GBASE-T PCIe Cardis a powerfully simple and cost-effective way to add dual-port copper 10GbE connectivity to your Mac Pro® tower or Windows® PC, or Linux® server.

CAT-6 Cables

Connect your computer to the switch or device’s 10GbE ports via inexpensive CAT-6 or CAT-6A copper cabling

Compatible with 2023 Mac Pro

Key Features

Adds 10GbE Connectivity to Mac Pro Towers, Windows PCs, and Linux Servers—Powerfully simple way to add high-performance 10GbE connectivity to your computer with PCIe slots

Optimized for Thunderbolt™—Ideal for use in Sonnet's Echo Express and xMac™ Thunderbolt-to-PCIe card expansion systems

Cost Effective—Connects to 10GbE infrastructure via inexpensive CAT-6 or CAT-6A cables at distances up to 55 or 100 meters, respectively

Simple Setup—Low-profile x4 PCI Express® 3.0 card installs into an available slot, and after a simple driver installation, configures through OS X Network control panel or Windows Device Manager

Supports Transparent Failover—Keeps your computer connected in case a single cable is disconnected or one of the ports fails

Supports Link Aggregation (Teaming)—Increases throughput beyond what a single connection can sustain(1)

Shadow
10x the Performance of Gigabit Ethernet
Install. Connect. Configure. Speed! Icons

Simple Set-Up. High-Performance Computing.

Twin10G 10GBASE-T PCIe Card enables you to connect your computer to high-speed infrastructure and storage without stepping down in speed. Setup is simple—after installing the low-profile card into an available x4 or larger PCIe slot in your computer, just download and install a driver, connect to the switch or device’s 10GbE ports via inexpensive CAT-6 or CAT-6A copper cabling at distances up to 55 or 100 meters, respectively, and then configure the card through the OS X® Network control panel or Windows Device Manager. This Sonnet solution is perfect for high-performance computing where low latency, high bandwidth, and low CPU overhead are required.

Dual Ports IconIts increased throughput performance and low host-CPU utilization are achieved through functions such as flow control support, 64-bit address support for systems using more than 4GB of physical memory; and stateless offloads such as TCP, UDP and IPv4 checksum offloading, enabling your computer to perform better while large files transfers or high I/O operations take place. With its dual ports, this Sonnet adapter supports transparent failover to keep your computer connected in case a single cable is disconnected or one of the ports fails, and it also supports link aggregation (teaming)(1) for increased throughput!

Thunderbolt ConnectionsOptimized for Thunderbolt

Got a Thunderbolt connection, but no PCIe slot? This PCIe card is ideal for use in one of Sonnet's Echo Express or xMac Thunderbolt-to-PCIe card expansion systems — the combo enables you to add ultra-fast 10GbE network connections to any Mac® or Windows PC with a Thunderbolt 2 port.




 Computer hardware shown in photos for illustration purposes; items sold separately. See package contents for items included with PCIe card.
See Tech Specs Tab for footnotes
Part No.
G10E-2X-E3 Twin10G 10GBASE-T PCIe Card
Hardware
Warranty 2-year
Form Factor Low-profile PCIe computer card
External Connectors RJ45
Controller Intel X540/X550 (subject to part availability)
Bus Interface
  • X540 PCIe v2.0 x8
Network Support

10GBASE-T

  • 100 meters using CAT-6A cabling
  • 55 meters using CAT-6 cabling

1000BASE-T

  • 100 meters using CAT-5E, CAT-6, or
    CAT-6A cabling
Link Aggregation
(Teaming)
Supported(1)
Packets Maximum packet size: 15872 bytes (jumbo frames)
Advanced Features
  • Flow control support
  • Message Signaled Interrupts (MSI)
  • RSS (Receive-Side Scaling)
  • Interrupt coalescing
  • Multicast filtering
  • 64-bit address support for systems using more than 4GB of physical memory
  • Wake-on-LAN not supported
Stateless Offloads
  • TCP, UDP and IPv4 checksum offloading
  • TSO (TCP Segmentation Offload, AKA Large Send Offload)
  • LRO (Large Receive Offload)
RoHS Compliant Yes
Package Contents
  • Twin10G 10GBASE-T PCIe Card
  • Full-height and half-height mounting brackets
  • Documentation



Specifications subject to change without notice.










Computer Compatibility

Mac Pro® 3,1, 4,1, 5,1, 7,1 (2019), or 14,8 (2023)

PC desktop or server

Thunderbolt to PCIe Card Expansion System

OS Compatibility

OS X 10.8.5 - macOS 13

macOS Sonoma 14.4+

64-bit editions of Windows 11, 10; Server 2022, 2019, 2016

Linux
- RHEL 8.5/8.4
- SLES 15 SP3, 12 SP5
- Ubuntu 20.04 LTS, 18.04 LTS

FreeBSD 13.0/12.3

VMWare, ESXi 8,7

Thunderbolt Compatibility

Mac or PC via a Thunderbolt to PCIe Card Expansion System


Technical Notes

  1. Switch/router must support link aggregation (teaming) and ports must be configured for link aggregation.
